Wallbox eMH1 Basic

The easy solution

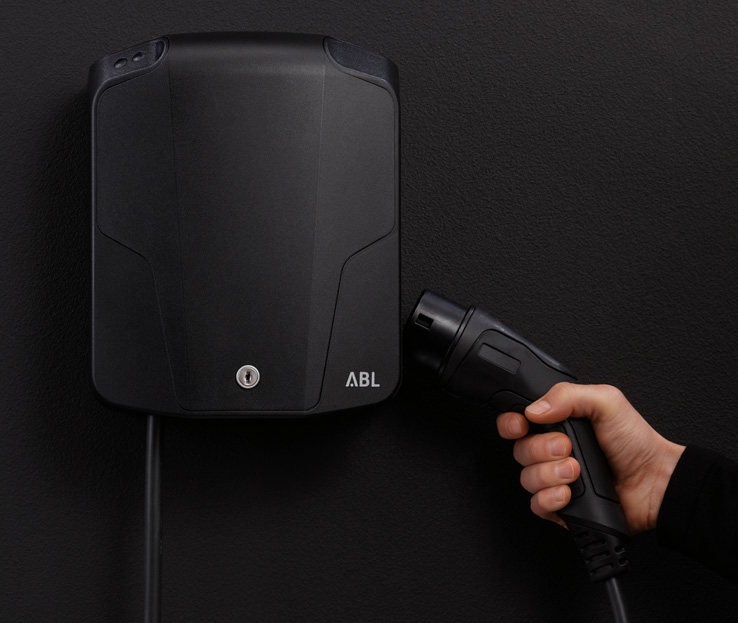

Wallbox eMH1 Basic

The new addition to the eMH1 line - the Wallbox eMH1 Basic. Like all other ABL wallboxes, the new addition features integrated DC fault current detection. To connect the Wallbox eMH1 Basic, all you need is a Type A RCCB. Alternatively, you can opt for the preconfigured, ready-to-use Wallbox eMH1, which topped 11 other wallboxes tested by German Automobile Association (ADAC).

Find more information in our brochure
Download PDF

Quick Facts

Wallbox eMH1 Basic

Wallbox
eMH1 Basic

Item No. 1W1108

Wallbox eMH1 Basic

Wallbox
eMH1 Basic

Item No.
1W2208

Wallbox eMH1

Wallbox
eMH1

Item No. 1W1101

Overview

11 kW
Charging output

22 kW
Charging output

11 kW
Charging output


ADAC test winner
with top grade 1.0

6,35 m
Charging cable

6,35 m
Charging cable

6,35 m
Charging cable

Typ 2
Charging connector

Typ 2
Charging connector

Typ 2
Charging connector


Requires Type A RCCB onsite in the domestic power distribution


Requires Type A RCCB onsite in the domestic power distribution



Integrated Type A RCCB


Welding detection capability: the charging procedure will be terminated if a welded contactor is detected


Welding detection capability: the charging procedure will be terminated if a welded contactor is detected


Welding detection is activated on contactor welding

Other protective features


Temperature monitoring: if overheating is detected the system will automatically reduce the charging current


Temperature monitoring: if overheating is detected the system will automatically reduce the charging current


Temperature monitoring: if overheating is detected the system will automatically reduce the charging current


Electronic DC fault
current detection


Electronic DC fault
current detection


Electronic DC fault
current detection


Current sensing to detect
phase unbalance

Design


Compact, space-saving
design


Compact, space-saving
design


Compact, space-saving
design


Weatheproof with IP54 ingress protection rating


Weatheproof with IP54 ingress protection rating


Weatheproof with IP54 ingress protection rating


Lockable access to
switching devices


Lockable access to
switching devices


Lockable access to
switching devices


Coloured LEDs to indicate
charging status


Coloured LEDs to indicate
charging status


Coloured LEDs to indicate
charging status

Functionality


Easy to operate


Easy to operate


Easy to operate


Suitable for
load management


Suitable for
load management


Suitable for
load management


Dedicated software to adjust
charging current in 1A increments


Dedicated software to adjust
charging current in 1A increments


Dedicated software to adjust
charging current in 1A increments


Suitable for
group solutions


Suitable for
group solutions


Suitable for
group solutions


Our test winner

Wallbox eMH1







Accessories

Stele POLEMH1

Pole

Powder-coated metal pole with LED lights and twilight sensors for all wallboxes eMH1

Prod. No. POLEMH1
Weather protection roof WPR12

Weather protection roof

Weather protection roof for mounting on wall or pole POLEMH1 / POLEMH2

Prod. No. WPR12
Charging cable holder CABHOLD

Charging cable holder

Type 2 charging plug attachment and cable holder for all wallboxes eMH1, eMH2 and eMH3

Prod. No. CABHOLD
  • Mounting plate for wallbox eMH1
  • Mounting plate for wallbox eMH1

Bracket

The practical solution for tidying up the charging cable

  • Mounting plate with key switch for Wallbox eMH1
  • Mounting plate with key switch for Wallbox eMH1

Bracket with keyswitch

The practical solution for tidying up the charging cable including access control via a key switch

Wallbox eMH1 Basic

Technical Data Sheets

You can find model numbers, rated voltage, safety equipment, charge monitoring and other information in our technical data sheets.

Download

Installation and user manual

A manual with detailed illustrations to guide the intuitive installation and operation of the eMH1 Wallbox.

Download

Technical Data Sheets

You can find model numbers, rated voltage, safety equipment, charge monitoring and other information in our technical data sheets.

Download

Installation and user manual

A manual with detailed illustrations to guide the intuitive installation and operation of the eMH1 Wallbox.

Download

Your personalized eMH1 Wallbox

Would you like to give your eMH1 Wallbox a personal touch? On request, our partner for all things printing offers you high-quality decorative foil to individualize your Wallbox.

www.meysel.de

Personalized Wallboxes

Your personalized eMH1 Wallbox

Would you like to give your eMH1 Wallbox a personal touch? On request, our partner for all things printing offers you high-quality decorative foil to individualize your Wallbox.

www.meysel.de

Installation video

The compact and informative installation video guides you step by step through the installation and commissioning of the Wallbox eMH1.

Download

Installation video eMH1

Installation video

The compact and informative installation video guides you step by step through the installation and commissioning of the Wallbox eMH1.

Download
