Wallbox eMH1

Plug & Charge –
simple solution

The Wallbox for your home

Wallbox eMH1

Plug & Charge –
simple solution

The Wallbox for your home

The easy Plug & Charge solution for your home

On December the 3th 2018, the ADAC, Europe's largest automobile association with around 20 million members, published the results of its wall box product test. Twelve wall boxes from international manufacturers with charging capacities from 3.7 to 22 kW were tested. Reliability during charging, safety and ease of use were put to the test in this comparison of the different systems.

The eMH1 Wallbox by ABL received top ratings for all three criteria. The report also emphasized as a positive that the eMH1 Wallbox does not require additional residual current protection. The Wallbox is pre-installed ready for connection, so there are no hidden additional costs. All electric vehicles tested by ADAC were able to be charged easily at the eMH1 Wallbox. The result is unambiguous: With a top mark of 1.0, the eMH1 Wallbox by ABL is the winner.

Quickfacts

Preconfigured and ready to install

Space-saving housing

Weatherproof

High safety standard

Lockable access to switching devices

Easy to operate

Lookbook

Wallbox eMH1 Ladelösung für private Garage

Wallbox eMH1 in the private garage

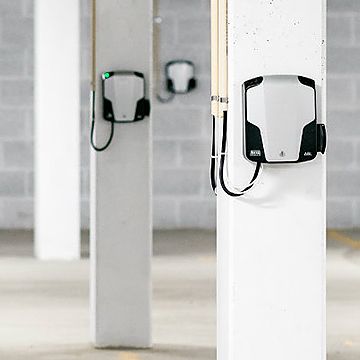

Wallbox eMH1 Ladelösung für Parkhaus

Wallbox eMH1 parking garage Norway with 44 charging points

Wallbox eMH1 mit Stele Ladelösung für Privat

Wallbox eMH1 in place on the private parking lot

Underground car park Bærum, Norway with 100 charging points

Wallbox eMH1 Ladelösung für Parkhaus

Wallboxes eMH1, wall mounting

Wallbox eMH1 Ladelösung für private Garage

Wallbox eMH1 in the private garage

Wallbox eMH1 Ladelösung für Parkhaus

Wallbox eMH1 parking garage Norway with 44 charging points

Wallbox eMH1 mit Stele Ladelösung für Privat

Wallbox eMH1 in place on the private parking lot

Underground car park Bærum, Norway with 100 charging points

Wallbox eMH1 Ladelösung für Parkhaus

Wallboxes eMH1, wall mounting

Technical data

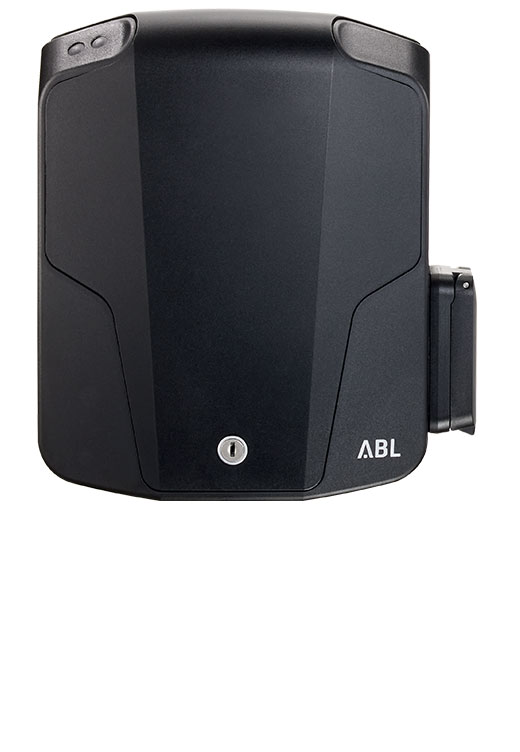

Wallbox eMH1 mit Steckdose

eMH1

with charging socket

Wallbox eMH1 mit Ladekabel

eMH1

with charging cable

All wallboxes eMH1 have:

Integrated temperature monitoring

Integrated temperature monitoring protects the eMH1 Wallbox from overheating. Should the temperature exceed the limit, it reduces the charging output of the Wallbox or switches it off completely. If the temperature drops again, the eMH1 Wallbox automatically switches back to full charging output.

DC fault current detection & Type A RCCB

The combination of DC fault current detection module and Type A RCCB provides a complete solution. This makes Type B or Type EV RCCBs redundant. If a DC fault current is detected in the charging circuit, charging is interrupted for 30 seconds. At the end of this period, the Wallbox restarts automatically.

Phase current measurement

The integrated phase current measurement module detects asymmetries between individual phases in all Wallboxes connected to 3-phase power.

Welding detection

Welding detection is covered by hardware technology. The residual current circuit breaker (RCCB) is tripped remotely if a contactor weld occurs.

Adjustable charging current

The charging current range can be selected in 1 A increments via software.


 11 kw • 16 A • 3ph22 kw • 32 A • 3ph
Charging cable type 2 (approx. 6 m) ja   ja
Charging socket type 2   ja   ja
Item No. 1W1101

Data Sheet
PDF
1W1121

Data Sheet
PDF
1W2201

Data Sheet
PDF
1W2221

Data Sheet
PDF

Charging cable or charging socket?

For domestic use, the eMH1 Wallbox with charging cable is recommended. The annoying 'getting the charging cable from the trunk' is eliminated. Simply connect the charging connector to the vehicle, and the charging procedure can be initiated.

As an optional accessory, the mounting plate for the eMH1 Wallbox offers you an optimal solution for storing the charging cable.

For commercial applications, the eMH1 Wallbox with charging socket offers maximum flexibility. Any vehicle with a Type 1 or Type 2 connector can be charged using an adapter cable.

Accessories

Stele für Wallbox eMH1

Pole

Powder-coated metal pole with LED lights for all wallboxes eMH1 with and without bracket

  • Montageplatte für Wallbox eMH1
  • Montageplatte für Wallbox eMH1

Bracket

The practical solution for tidying up the charging cable

  • Montageplatte mit Schlüsselschalter für Wallbox eMH1
  • Montageplatte mit Schlüsselschalter für Wallbox eMH1

Bracket with keyswitch

The practical solution for tidying up the charging cable including access control via a key switch

  • homeCLU Lastmanagement
  • homeCLU Lastmanagement

homeCLU

The intelligent load management for your home

  • Ladekabel Typ2
  • Ladekabel Typ2

Charging cable Typ 2

according to IEC 62196-2

32 A 240/415 V AC - 3 ph
Length approx. 4 m Splash-proof IP44



Prod. No. LAK32A3
  • Ladekabel Typ2
  • Ladekabel Typ2

Charging cable Typ 2

according to IEC 62196-2

20 A 240/415 V AC - 3 ph
Length approx. 7 m splash-proof IP44



Prod. No. LAKC222
  • Adapterkabel Typ 2 auf Typ 1
  • Adapter Typ 2 und Typ 1

Adapter cable type 2 - type 1

according to IEC 62196-2

32 A 230 V AC - 1 ph
Length approx. 4 m Splash-proof IP44

Prod. No. LAKK2K1

Discover eMH1

Your personalized eMH1 Wallbox

Would you like to give your eMH1 Wallbox a personal touch? On request, our partner for all things printing offers you high-quality decorative foil to individualize your Wallbox.

www.meysel.de

Your personalized eMH1 Wallbox

Would you like to give your eMH1 Wallbox a personal touch? On request, our partner for all things printing offers you high-quality decorative foil to individualize your Wallbox.

www.meysel.de

Technical Data Sheets

You can find model numbers, rated voltage, safety equipment, charge monitoring and other information in our technical data sheets.

Download

ADAC Folder

You want to know more about the ADAC test winner and the relaunch of the eMH1 Wallbox? You can find all the important information as well as the new product numbers in our ADAC Folder.

Download

Installation and user manual

A manual with detailed illustrations to guide the intuitive installation and operation of the eMH1 Wallbox.

Download

Technical Data Sheets

You can find model numbers, rated voltage, safety equipment, charge monitoring and other information in our technical data sheets.

Download

ADAC Folder

You want to know more about the ADAC test winner and the relaunch of the eMH1 Wallbox? You can find all the important information as well as the new product numbers in our ADAC Folder.

Download

Installation and user manual

A manual with detailed illustrations to guide the intuitive installation and operation of the eMH1 Wallbox.

Download

Installation video

The compact and informative installation video guides you step by step through the installation and commissioning of the Wallbox eMH1.

Download

Montagevideo eMH1

Installation video

The compact and informative installation video guides you step by step through the installation and commissioning of the Wallbox eMH1.

Download
