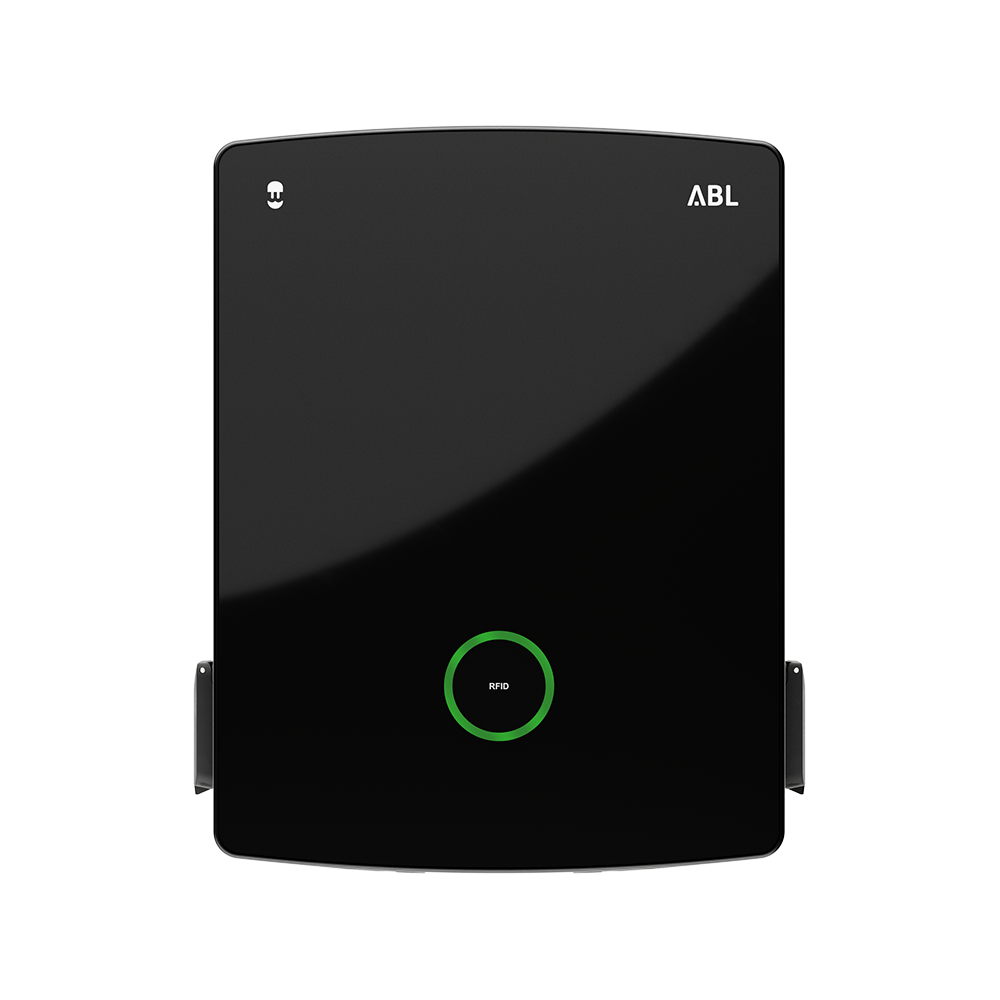

Wallbox eM4
Your wall.
Your box.
eMobility
made easy.
The new eMobility generation by ABL

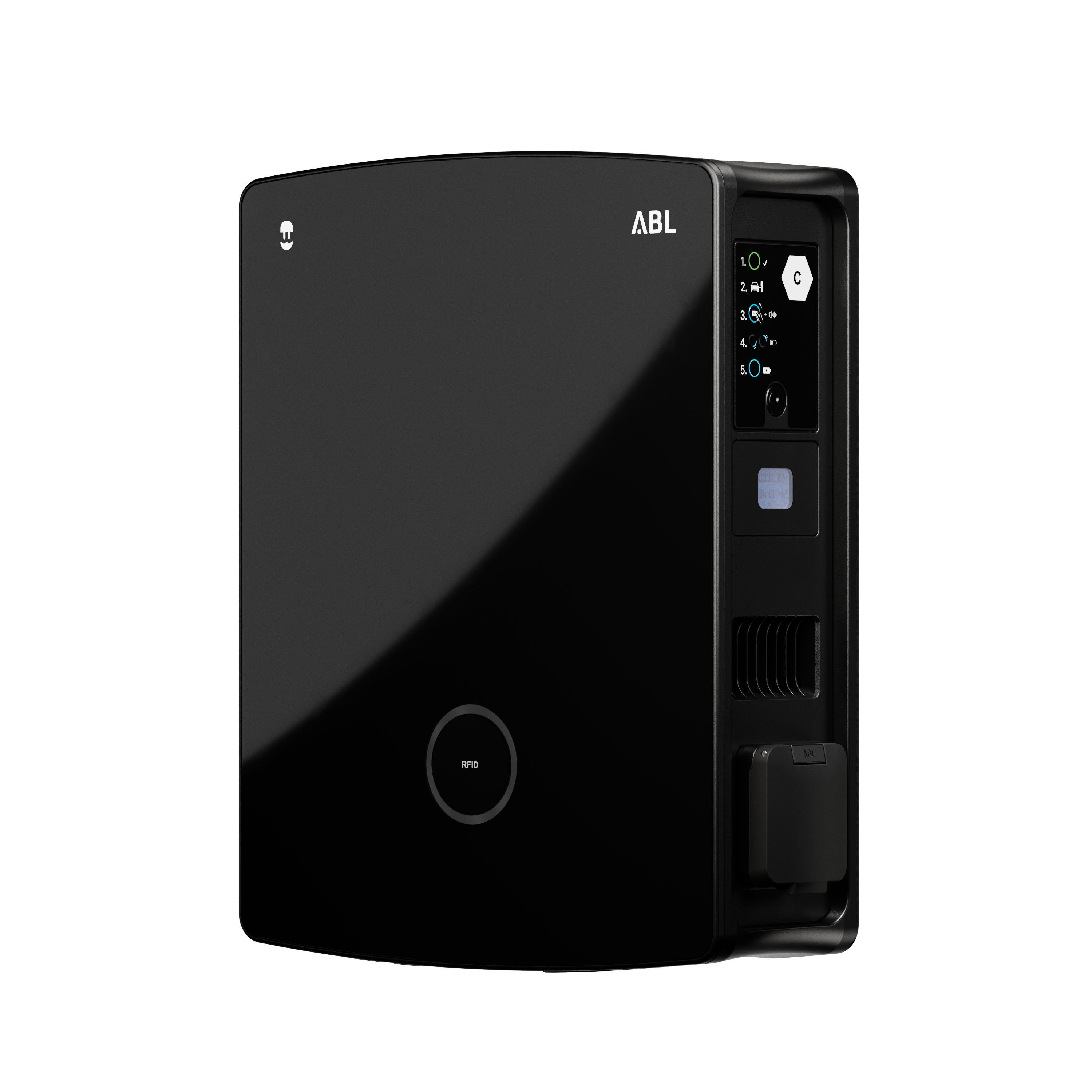

The Wallbox eM4 is our custom-fit charging station for use in companies, the housing industry, and car parks.
The expressive HMI of the Wallbox eM4 allows for intuitive operation of the charging station through visual feedback. Its comprehensive scope of functions and the high-quality design make the ABL Wallbox eM4 an aesthetic and future-proof charging solution for use in the commercial, public, and private sectors. The Wallbox eM4 is available with one or two charging points.
The Wallbox eM4 Twin was awarded the Design Plus Award 2022 and the Red Dot Design Award 2023.
The most important facts about the Wallbox eM4 at a glance
Easy configuration via App for iOS and Android
Backend/OCPP connection via LAN, WLAN or LTE
Wired & wireless group solutions for up to 100 charging points
Advanced load management functions
Standardised interfaces (OCPP Smart Charging, Modbus TCP) for integration into external systems
ISO15118 Hardware Ready for Plug & Charge
IP55 and IK10 for highest robustness
Available as Twin with two charging points or Single with one charging point

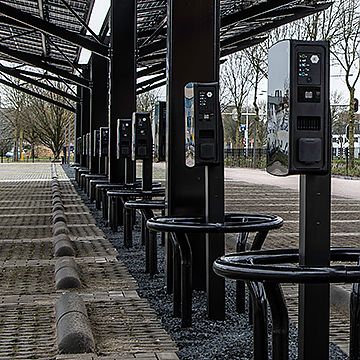

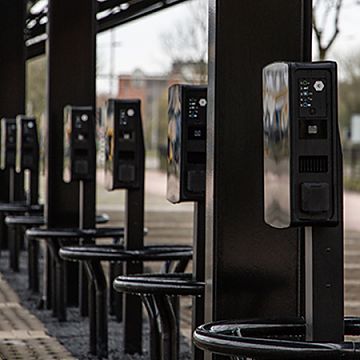

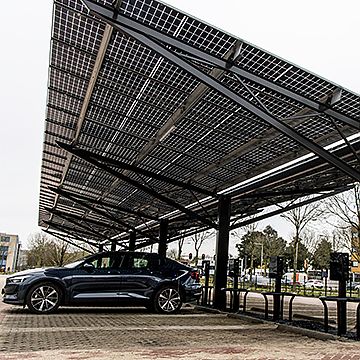

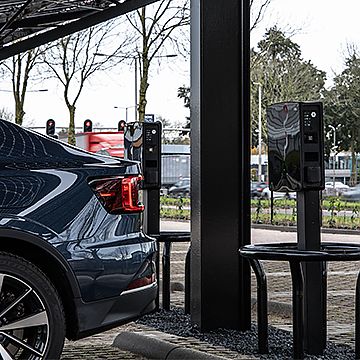

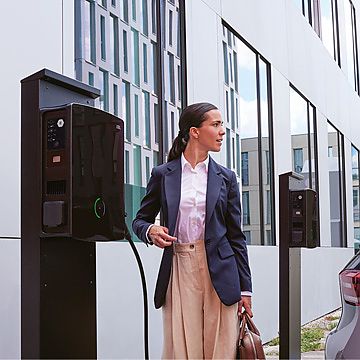

Use Cases Wallbox eM4 Twin

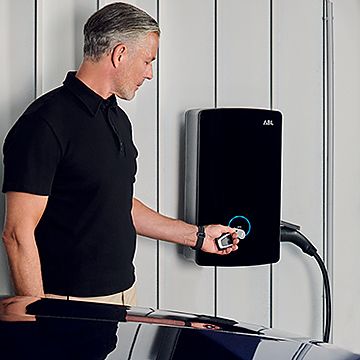

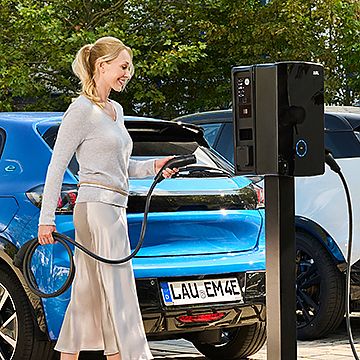

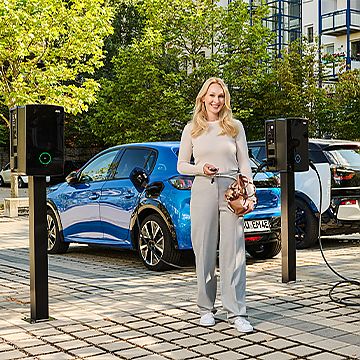

Use Cases Wallbox eM4 Single

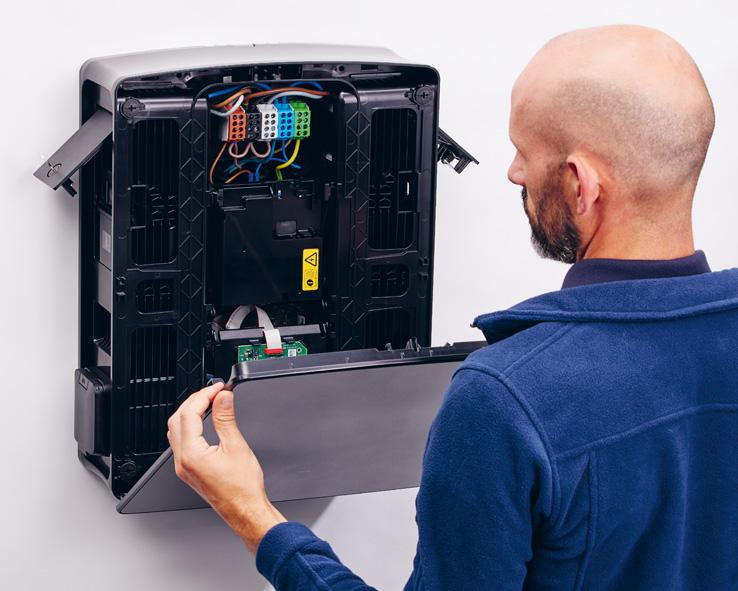

Quick installation
Qualified electricians can install the Wallbox eM4 Twin in less than 10 minutes. This means that installations of large charging parks can also be implemented quickly.

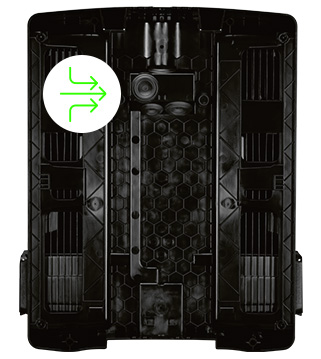

Various cable feed-through options
The power cable can be fed in from above, below or behind. Wallboxes eM4 Twin can thus be installed quickly and flexibly regardless of the location.

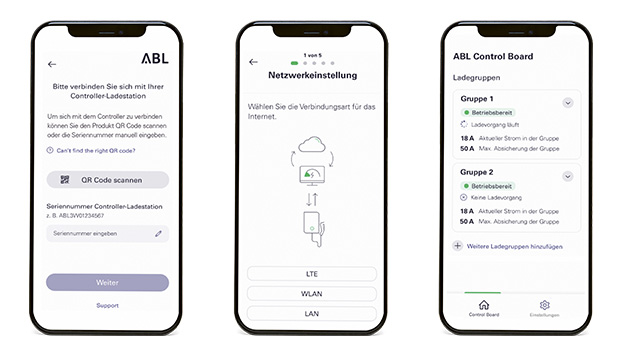

Easy configuration via app
With the new ABL Configuration App for electricians, configurations can be carried out easily and quickly.
The user interface is modern and user-friendly and an installation wizard guides through the configuration step by step.
Product portfolio Wallbox eM4 Twin

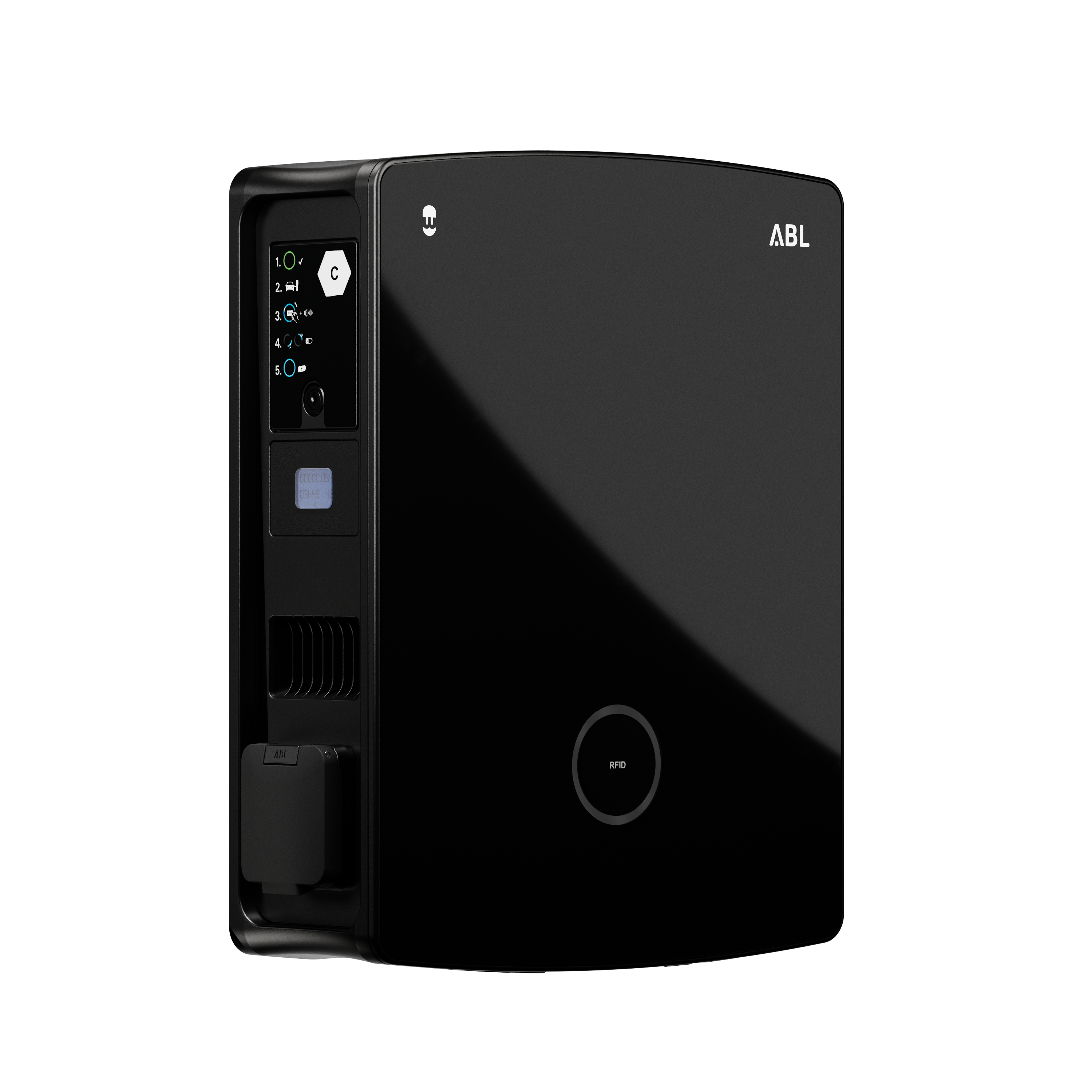

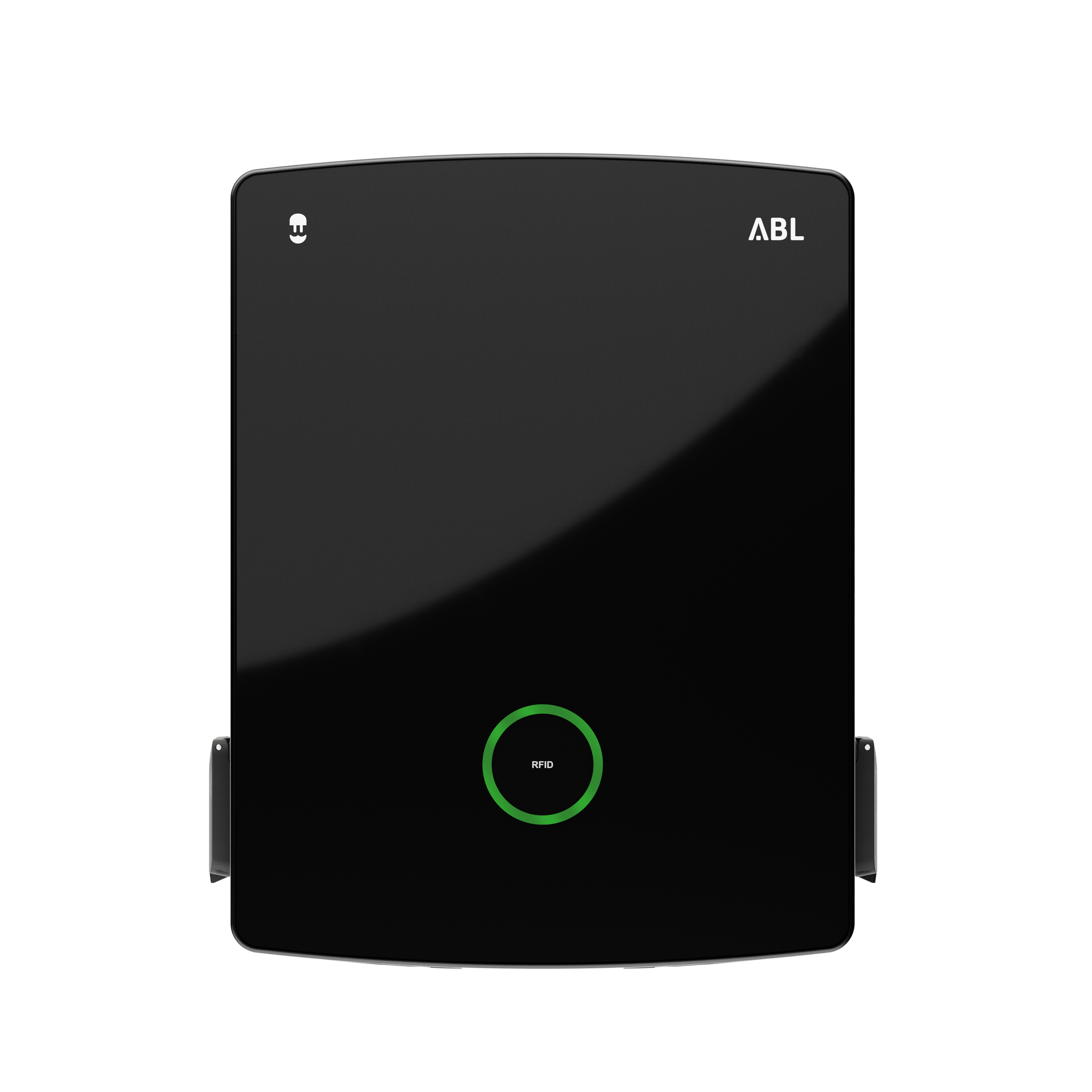

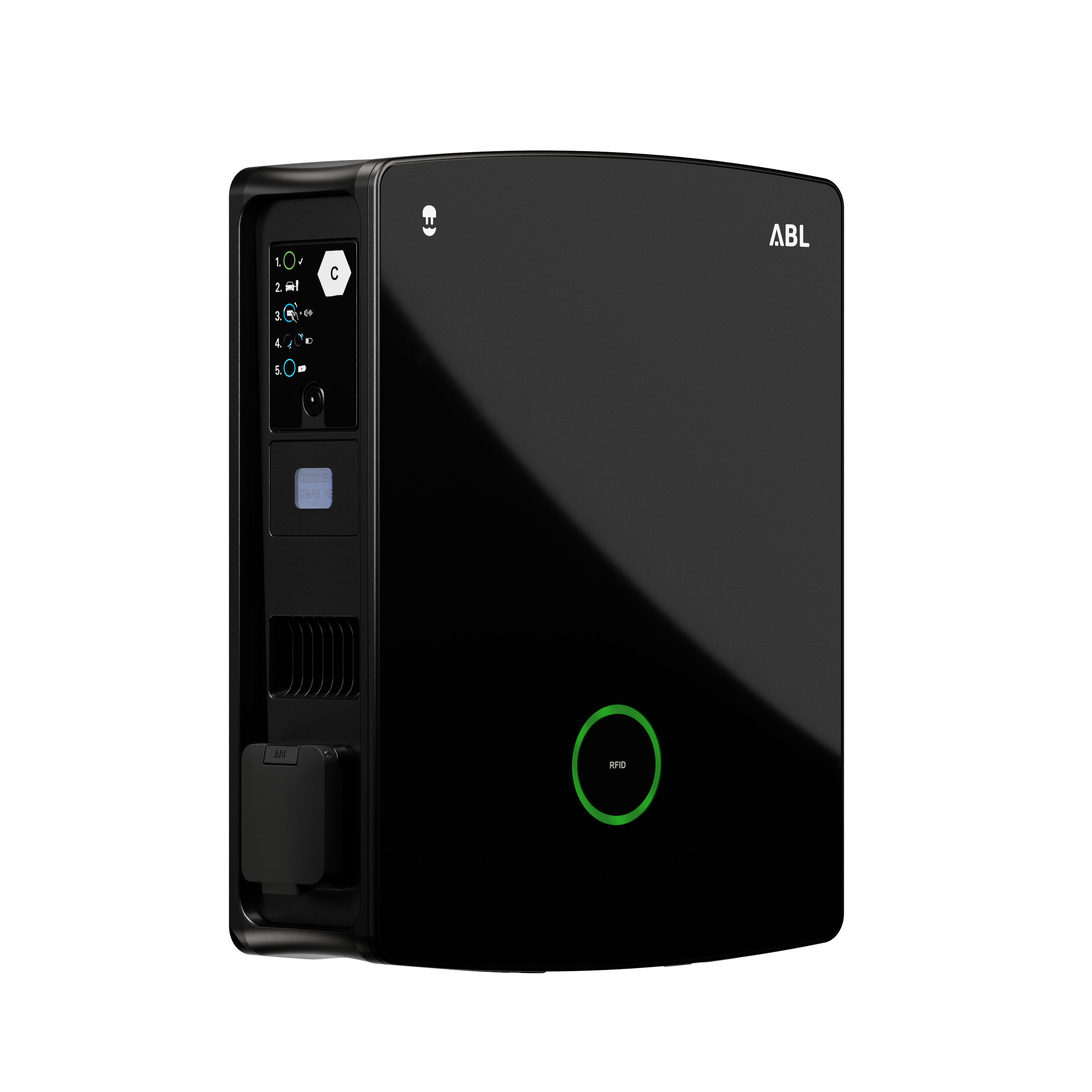

Wallbox eM4 Twin
Wallbox eM4 Single
| Wallbox eM4 Single Controller | Wallbox eM4 Single Extender | |||
|---|---|---|---|---|
| Backend connection OCPP* | a | ja | ja) | ja |
| Charging socket type 2 | a | a | a | a |
| Compliant with the German callibration law | x | x | ||
| Item Nr. | 100000151 Data sheet |
100000152 Data sheet |
100000157 Data sheet |
100000158 Data sheet |
Wallbox eM4 reev ready
The reev ready variants of the Wallbox eM4 combine powerful ABL hardware with intelligent reev software.
Preconfigured Wallbox eM4 reev ready
with integrated SIM card
Easy activation of the reev dashboard through
reev ready licence key
reev ready licence key
Compact or Pro
| Controller reev ready | Extender reev ready | |||||||
|---|---|---|---|---|---|---|---|---|
| Charging socket type 2 | ja | ja | ja | ja | ja | ja | ja | ja |
| 1 charging socket |
ja
|
ja | ja | ja | ||||
| 2 charging sockets | ja | ja | ja | ja | ||||
| Compliant with German calibration law | ja | ja | ja | ja | ||||
| Prod. Nr. | 100000180 Data sheet |
100000182 Data sheet |
100000200 Data sheet |
100000202 Data sheet |
100000181 Data sheet |
100000183 Data sheet |
100000201 Data sheet |
100000203 Data sheet |
Accessories
Mode 3
charging cable portfolio
consisting of Type 2 charging
cables in various designs
